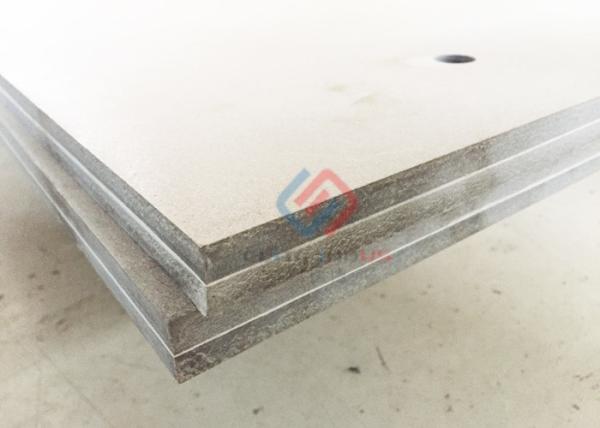

Customized Chroming hot press plate for hot press with high quality

mainly products are the full production line of particleboard , MDF, multi-layer veneer board, blockboard, as well as varieties of new type hot press machine, pre-press machine, CNC automatic paving machine, dryer, CNC automatic edge trimming machine, dust-removal machine, drum dryer series, roller/net-bag venner dryer and other various kinds of wood-based panel production equipment.

Advantages:

· Excellent thermal uniformity on the surface

· Less scrap parts and more heating/cooling control

· A more responsive platen

· Quicker heat up times

· Rapid thermal recovery for quick cycle applications

Detailed specifications:

1. Heat carrier: Oil or Water or Steam

2. Steel material: Q235B or Q345

3. Size of hot platen:

specification 01: 2100*1100*42mm
specification 02: 2700*1370*42mm
specification 03: 2700*1370*52mm
specification 04: 2600*1500*120mm
specification 05: 2600*1500*100mm
specification 06: 2600*1400*100mm
specification 07: 2600*1400*120mm

Remarks: We can design this hot platen according to your request.

4. Parallelism of surface tolerance: 0.03mm sqm

5. Smoothness accuracy less than 1.8 microns

6. Thickness tolerance: +/- 0.5mm

7. Diameter of cross holes internal: 30mm or 25mm

8. Distance between cross channels: 90mm

9. Accuracy of alignment inside channels: 0.033mm

10. Hydraulic pressure of welding gap: 30kg/cm2

11. The uniformity tolerance of surface temperature: 3°C

Data Sheets:

Introduction of Plate

ELITE Heating platen application advisor. In manufacturing, a platen is a metal plate used in presses. The press can be for laminating or for the production of a wide range of items including gaskets, particle board, semiconductor wafers, and plywood. Many of these processes require heating the platen to high temperatures. These heaters deliver high watt densities and are designed to fit in tight spaces. Heating is a complex process governed by the principles of thermodynamics, fluid mechanics, and heat transfer. Heat transfer, in particular, is useful knowledge as it will help inform important aspects of heater selection and system design. Heat transfer is the movement of heat from one area (or object) to another, always from areas of high concentration (hot) to areas of low concentration (cool).

Packing of Platen :

After the final inspection, the plates are protected from corrosion. The plates are packed depending on the transport type. Packaging provides safe manipulation and guarantees damage-free delivery.

Our Company:

Our factory now has multiple large gantry milling machine several sets of advanced hot platen

production lines,excellent and advanced technology, Scientific testing methods to strict management of every process,ensure qualified products Shipped.Our hot platen products are widely trusted by

customers. What’s more, Our factory can design and manufacture various product specifications according to customers'requirements.

Anhui Elite Industrial Co.,Ltd

is a mechanical parts welding manufacturer that integrates design, manufacturing, assembly, testing, and exporting, proudly providing a comprehensive solution for mechanical parts. Our company is based on OEM, but adhering to the concept of "quality priority, intellectual first", while pursuing quality our company has gradually paid attention to design and manufacturing processes, and expects to accomplish the goal of over-OEM to ODM in the future.

Elite's production base is located in the beautiful City Kunshan, with a factory area of 22,000 square meters and a construction area of 14,000 square meters. Founded in 2011, our company has more than 100 outstanding employees, more than 20 office technicians, with a high-level welding team consisting of several international welders (ISO 9606-1 International Welders Certificate) and senior welders, also with a group of skilled machining operators and a skilled assembly team.

We passed the ISO9001 quality assurance system in 2011 and established own quality control team. We continuously receive and learn the customer's requirements for product quality, and conscientiously implements the quality-first service-best management concept, therefore we accumulated a good reputation in the industry field and received customer’s recognition simultaneously.

Our company has the CNC flame cutting machine, plasma cutting machine, laser cutting machine, CNC boring and milling machine, 6meter CNC gantry machining center, 8meter gantry boring and milling machine, 4meter CNC guide grinding machine, TRUMPF laser cutting machine, 4 to 8 meters Bending machines and various common welding machines.

We have High-precision testing equipment such as Hexagon gantry three-coordinate detector(DEA ALPHA) , Leica laser tracker and articulated arm measuring instruments. Besides using the efficient equipment to solve problems, our technical team is constantly researching new production processes to meet the new requirements in the market, and also invest more advanced machining and welding equipment.

At present, our main products focus on welding parts, machined parts, industrial pressure platens, guide rods /column/pillar, press roller, calender roller and other machine body with accessories, for the large welded structural parts can be made to a single weight of 15 tons, the thickness of the heating platen and insulation board can be made a tolerance of ±0.1mm from 20mm to 200mm, the rod column can achieve Max. Φ300mm with length in 6 meter, surface with chromed coating by thickness up to 0.07mm.

We can also pre-assemble equipment components according to customer requirements, such as assembly of some fixtures and welding line bases. Our customers spread both domestic and foreign markets, we’re working with some of FORTUNE GLOBAL 500 and eventually becomes a long-term stable partner.

We attach great importance to the talent training strategy, regularly conducts knowledge and operation standards training for new employees, and enables competent employees to further study. Currently we cultivated a group of assistant engineers, intermediate welders, intermediate molders, electrical technicians, welders, and testing personnel, with these people we're confident to the future.

In the past years, we have been working hard to grow and thrive.

Through continuous learning and accumulation, we brought high-quality products and services to customers, provided employees with a reliable platform and place, got opportunities and challenges.

We hope that in the next chapter, we will continue to maintain our customers and be success.
