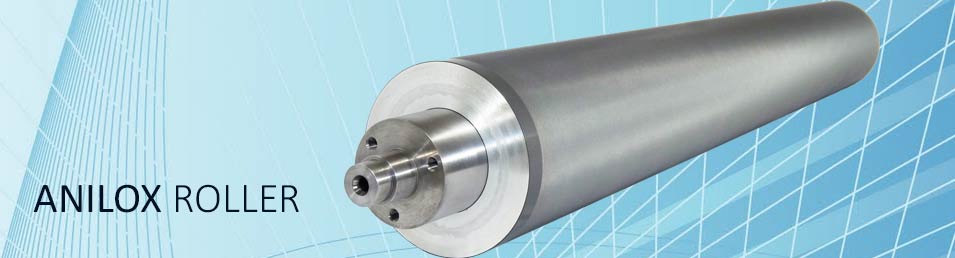

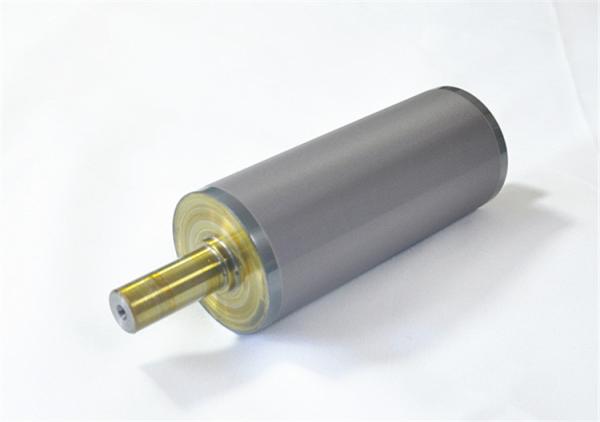

Flexo printing press spare part ceramic anilox roller coated printing roller

We are supported by seasoned professionals who aid us to offer the qualitative range of Rollers and other four categories of roller. These products are highly trusted for their durability, perfect finish, High-definition, rich experience etc.finished .

Specification

A. a strict inspection procedure of base roller:
Incoming inspection including surface roughness,straightness, dynamic balance,cylindricity and so on

B. material: 45# steel tube or No5 series aluminum
General performance requiremen: 45# steel tube
lighter weight requirement : No5 series aluminum

C. thickness : 15mm-25mm
We can also make the special thickness according to customers requirement.

Production process

Advantages

1. Precise delivery on the inks
First, We make trial engraving before the real engraving.
Second, we use the scanner to scan each layer to test the volume of the cell
Third, according to the realationship between the LPI and BCM , we can make sure whether the LPI is ok.

2. Chrome oxide ceramic layer
A. Using the famous plasma spraying machine from Switzerland supplier.
B. The evenness of 80% ceramic powder can be controlled between 15u-35u
C. The hardness of chrome oxide ceramics can reach 1200HV.

3. Antiseptic treatment
we use the nanoscopic sealant to coat on the surface of the ceramic which can reach the tiny cell to protect the base roller from solvent corrosion.

Application

A. Flexo printing machine(unit type ,central cylinder type,cascade type)
B. Gravure printing machine
C. Corrugated water-based ink printing slotting machine
D. Coating and lamination machin
E. Glazing machine ect.

Packing

Packaging Details: standard export steel box and wooden box
Port: Shanghai, China
Lead Time : 10--20days


Service life
Under nomal operation and maintenance,our ceramic anilox rollers can work 8-10years or even longer.

FAQ
1. How many years have you been producing ceramic anilox rollers?
As the leading manufacturer of ceramic anilox roller,we have been in this field for more than 10years,and we have plenty experience in making rollers such as ceramic anilox rollers,rubber rollers and so on.

2. Why should we choose you?
We can provide you not only the competitive price product but also most satisfactory supporting service.

3. How can we get the price?

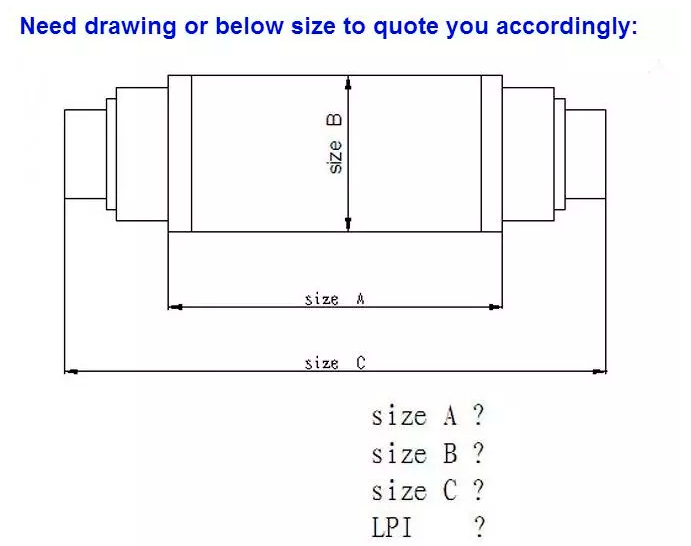

A.The drawing of the ceramic anilox roller if possible(or you can get a estimate price by telling us the total length,effective face length,diameter)
B.LPI an BCM
C.Where do you use the ceramic anilox roller?flexo printing machine,coating machine or offset UV unit?

4. How long is the lead time?
Usually it will take 30 days to produce the roller,but it also depends on the quantity and customer’s requirement.
